Hydraulic Double Pilot Operated Check Valve Two Cartridge Design

Product Pictures:

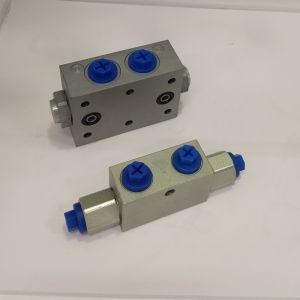

VRDD Double cartridge check valve with two cartridge hydraulic lock valve

1. A dual cartridge pilot check valve is a specific type of pilot-operated check valve that utilizes a dual cartridge design. It combines the features of a pilot control valve and a check valve into a single unit.

   Here's a description of the main components and operation of a dual cartridge pilot check valve:

   1. Cartridge Design: A dual cartridge pilot check valve consists of two separate cartridges. One cartridge houses the main check valve, while the other cartridge contains the pilot control valve. These cartridges are typically designed to be easily replaceable or interchangeable.

   2. Main Check Valve: The main check valve cartridge is responsible for regulating the flow direction. It operates similarly to a conventional check valve, allowing fluid flow in one direction while blocking reverse flow. When the pressure on the inlet side exceeds the pressure on the outlet side, the main check valve opens, permitting fluid to flow through. If the pressure on the outlet side becomes higher than the inlet side, the main check valve closes to prevent reverse flow.

   3. Pilot Control Valve: The pilot control valve cartridge is used to control the operation of the main check valve. It typically consists of a smaller control valve that is actuated by a pilot pressure or flow. When the pilot pressure reaches a certain threshold, it overcomes the resistance of the pilot control valve, allowing it to open. This, in turn, enables the main check valve to open or close, depending on the pressure conditions.

   4. Functionality: The dual cartridge pilot check valve combines the functions of a pilot control valve and a check valve. It allows for precise control over the opening and closing of the main check valve, providing enhanced flow control and preventing backflow. The pilot control valve can be actuated by various methods, such as manual operation, external pressure sources, or electrical or pneumatic signals.

   Dual cartridge pilot check valves are commonly used in hydraulic systems to regulate flow direction, control pressure, and prevent reverse flow. Their compact design and interchangeable cartridges make them convenient for maintenance and customization.

   As always, it's essential to refer to the specific manufacturer's documentation or consult with a qualified engineer for detailed information on a particular dual cartridge pilot check valve model.

Product technical data:

Product real pictures :

Company Exhibitions:

Our Certificate:

Product processing procedures:

Our new factory and workshop :

Our warehouse:

Shipment:

Different Series of Product , more details please contact us directly:

Welcome your visit and inquiry !
